產品中心

變角度電子皮帶秤

發布時間：2025-11-18 22:27:53      點擊次數：38

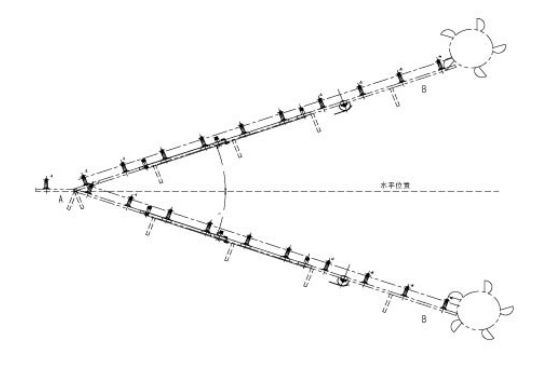

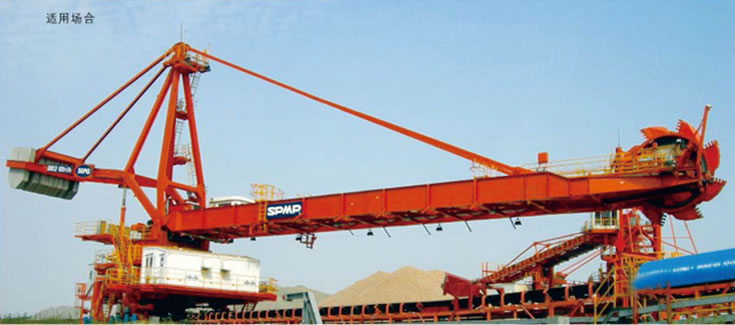

ICS變角度電子皮帶秤是為滿足堆取料機使用現場不斷變化的輸送現場而特殊研發的新型動態電子皮帶秤。通過專用的傾角補償器自動地將變化的角度特征傳遞給皮帶秤控制器，進行必要的處理后，修正零點和量程系數，從而有效保證皮帶秤的正確準確計量，可廣泛適應于電力、冶金、煤炭、建材、港口碼頭等行業堆取料機物科輸送現場。



CS angle electronic belt scale is to meet the stacker reclaimer field changing transportation field and spedal research and development of new dynamic electronic belt scale Th rough the special angle compensator automatically will change angle charactenstics are transmltted to the controller of belt weigher, after necessary treatment, zero and span coefficient correction, so as to effectively guarantee belt scale accurate measurement can be widely used in the industries of electric power, metallurgy, coal, building materials, port and dock pile reclaimer material transportation.

主要技術參數
計節精度：±0.5%
輸送機最大流量：小于6000TPH
皮帶速度：0.1 -4m/s
角度變化適用范圍：-30°-+30°
角度傳感器激勵電壓：5-24VDC

Main technical specifications
Measurern ent accuracy：±0.5 %
Conveyor maximum flow：less than 6000TPH;
Belt speed 01 -4m/sAngle variation range：-30°-+30°
Angle sensor excitation voltage：5-24VDC
